Tyfon® Pneumatic for Rolling Stock

The distinguished sound of Tyfon® is renowned in all fields of high-power audio signalling, and as such rolling stock manufacturers and operators throughout the world have chosen to equip their vehicles with Tyfon® warning horns.

  • Distinguished sound - The classic Tyfon® honk
  • Corrosion resistant and light weight - Thermoplastic horn
  • Customizable - Adjustable sound pressure level
  • Durable - Virtually maintenance-free
  • Cost efficient - Low Life Cycle Costs
  • Low air consumption - 5 -8 liters/second
  • Rolling Stock compliant - TSI LOC&PAS, UIC 644, IEC 61373, EN 45545-2
  • National regulations supported - GM/RT2131
  • Standard frequencies:
    311 ± 20 Hz, 370 ± 20 Hz, 470 ± 25 Hz, 622 ± 30 Hz, 660 ± 30 Hz (EN 15153-2:2013)
    370 ± 10 Hz, 660 ± 15 Hz (UIC 644)
  • Additional frequencies available:
    345 Hz, 350 Hz, 390 Hz, 440 Hz, 800 Hz, 1160 Hz
  • Cold climate operation - All horns can be provided with heating functionality
  • Harsh environments - Optional protection grids prevent snow and debris from entering the horns

Sales Manager

THOMAS SUNDQUIST

ts@kockumsonics.com
+46 40 671 88 00

Kockum Sonics - Pneumatic Tyfon for Rolling Stock

Tyfon® MKT 75/370

Kockum Sonics - Tyfon® MKT 75/370
  • Frequency:
    370 ± 20 Hz (EN 15153-2:2013)
    370 ± 10 Hz (UIC 644)
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
    120 - 125 dB(A) @ 5 m (UIC 644)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s

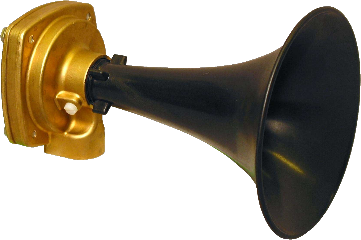

Tyfon® MKT 75/660

Kockum Sonics - Tyfon® MKT 75/660
  • Frequency:
    660 ± 30 Hz (EN 15153-2:2013)
    660 ± 15 Hz (UIC 644)
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
    120 - 125 dB(A) @ 5 m (UIC 644)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s

Tyfon® MKTH 75/370

  • Frequency:
    370 ± 20 Hz (EN 15153-2:2013)
    370 ± 10 Hz (UIC 644)
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
    120 - 125 dB(A) @ 5 m (UIC 644)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s
  • Heating: 110 VDC or 24 VDC

Tyfon® MKTH 75/660

  • Frequency:
    660 ± 30 Hz (EN 15153-2:2013)
    660 ± 15 Hz (UIC 644)
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
    120 - 125 dB(A) @ 5 m (UIC 644)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s
  • Heating: 110 VDC or 24 VDC

Tyfon® MKT 75/311

  • Frequency: 311 ± 20 Hz
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s

Tyfon® MKT 75/470

Kockum Sonics - Tyfon® MKT 75/470
  • Frequency: 470 ± 25 Hz
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s

Tyfon® MKT 75/622

  • Frequency: 622 ± 30 Hz
  • Sound pressure level:
    101 - 109 dB(C) @ 25 m (EN 15153-2:2013)
    115 - 123 dB(C) @ 5 m (EN 15153-2:2007)
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s

Tyfon® MKT 75/800

  • Frequency: 800 ± 30 Hz
  • Sound pressure level:
    120 - 125 dB(A) @ 5 m
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s

Tyfon® MKT 75/1160

  • Frequency: 1160 ± 50 Hz
  • Sound pressure level:
    116 - 120 dB(A) @ 5 m
  • Operation Pressure: 5 - 10 bar
  • Air consumption: 5 - 8 l/s
